Electric Battery Powered Cable Crimping Tools Crimp 16-300mm2

Send Inquiry

Product Description

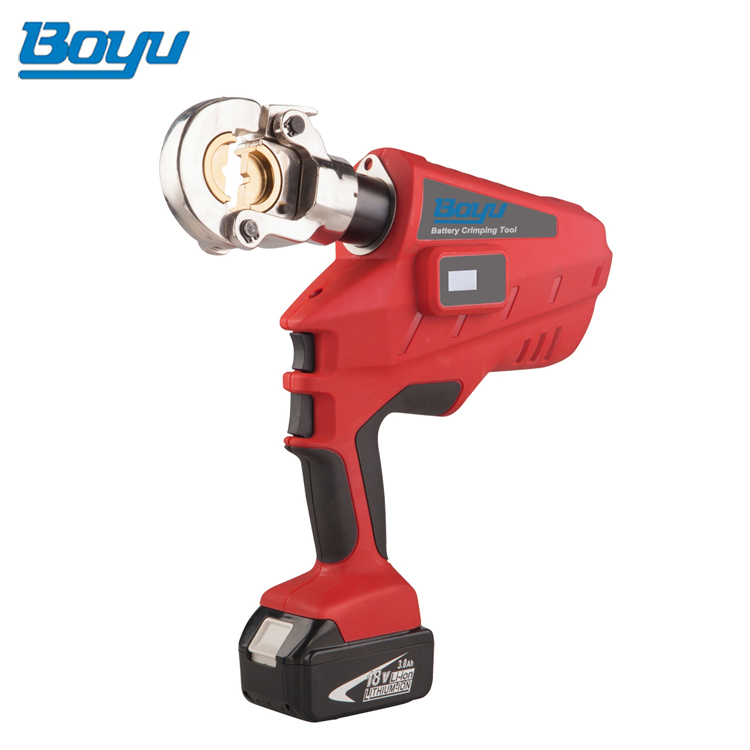

Battery Crimping Tool 16-300mm²

Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
A Temperature sensor makes the tool stop working automatically when the temperature over 60°C under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.

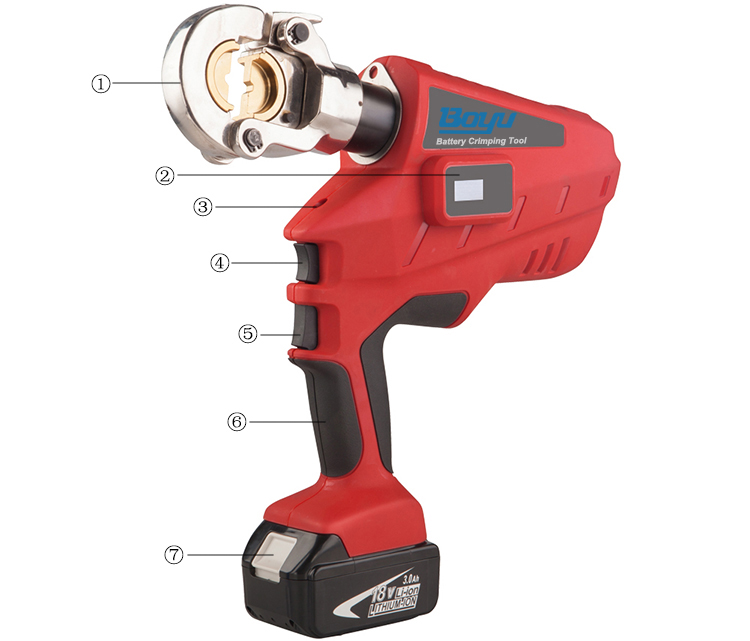

Head rotates 360°

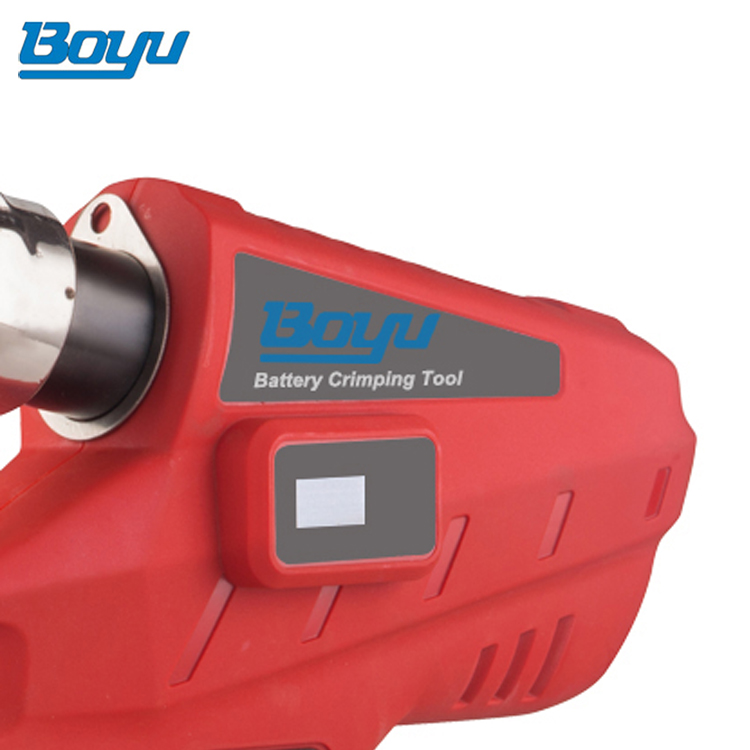

OLED Display (Crimp Times, Pressure, Voltage)
LED Light
Emergency Pressure Release Button

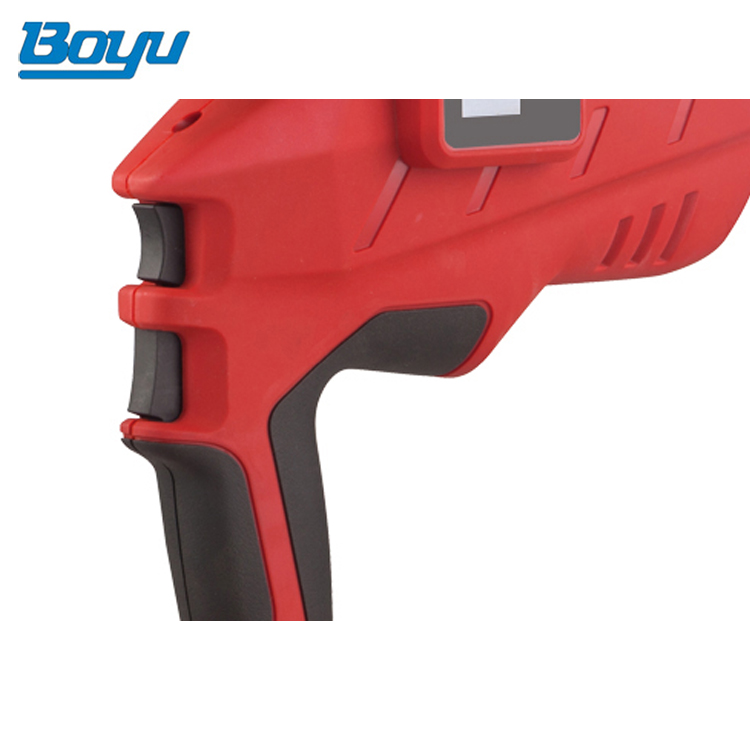

All tools can be controlled by one trigger
Ergonomic design for one hand operation. Micro computer control system-automatically detect the pressure

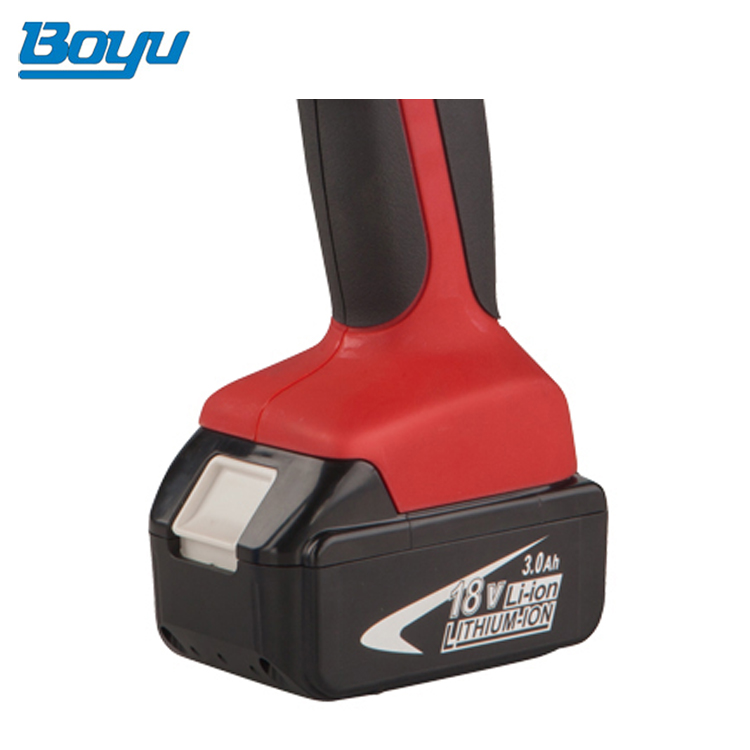

Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles

Technical Data

Model	TYNEC-300	TYNEC-300C	TYNEC-400	TYNEC-400U
Crimping force	60KN	120KN	130KN	130KN
Crimping range	16-300mm²	16-300mm²	16-400mm²	16-400mm²
Stroke	17mm	32mm	42mm	20mm
Crimp/charge	320times (Cu150mm²)	320times (Cu150mm²)	120times (Cu150mm²)	120times (Cu150mm²)
Crimping cycle	3-6s (depend on the size of cable)	3-6s (depend on the size of cable)	10-20s (depend on the size of cable)	10-20s (depend on the size of cable)
Voltage	18V	18V	18V	18V
Capacity	3.0Ah	3.0Ah	3.0Ah	3.0Ah
Charging time	45minutes	45minutes	45minutes	45minutes
Package	Plastic case	Plastic case	Plastic case	Plastic case
Crimping die	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²
Battery	2pcs	2pcs	2pcs	2pcs
Charger	1pc (AC110-240V,50-60Hz)	1pc (AC110-240V,50-60Hz)	1pc (AC110-240V,50-60Hz)	1pc (AC110-240V,50-60Hz)
Sealing ring of cylinder	1set	1set	1set	1set
Sealing ring of safety valve	1set	1set	1set	1set

General Features

The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.

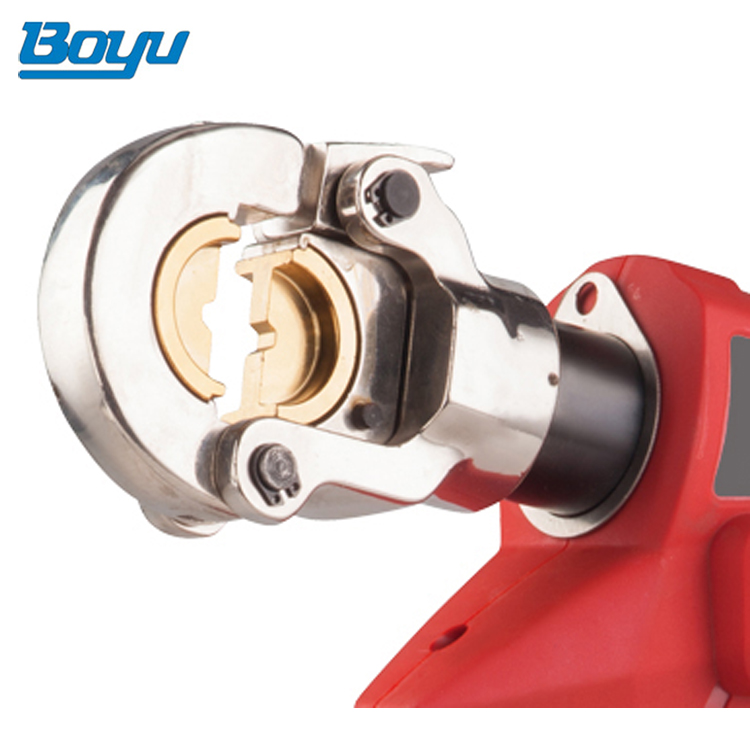

The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60°C under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.

Frequently Asked Questions (FAQ)

What is the crimping range of these battery-powered cable crimpers?

The crimping range varies depending on the model. For TYNEC-300 and TYNEC-300C, the range is 16-300mm². For TYNEC-400 and TYNEC-400U, the range is 16-400mm².

How does the micro-computer control system enhance safety?

The micro-computer control system automatically detects pressure during crimping and offers double safety protection. If there is a deviation from the set operating pressure or low battery levels, an acoustic signal sounds and a red display flashes to warn the operator.

What makes the double piston pump system efficient?

The double piston pump features a rapid approach towards the connecting material during the initial phase, and then automatically shifts to a slower, high-pressure crimping action to ensure a precise and secure connection.

How does the temperature protection mechanism work?

A built-in temperature sensor automatically halts operation if the tool's temperature exceeds 60°C during prolonged use. A fault signal sounds, and the tool will remain locked from operation until it cools down to a normal working temperature.

What are the advantages of the Li-ion battery used in this tool?

The Li-ion battery has no memory effect and zero self-discharge, ensuring the tool is always ready for operation. It offers a lower power-weight ratio with 50% more capacity and shorter charging cycles compared to traditional NiMH batteries.

Can the crimping head be rotated for hard-to-reach areas?

Yes, the crimping head can be rotated smoothly by 360° around its longitudinal axis. This allows operators to easily access and work in tight corners or other difficult-to-reach spaces.
