Product Description

• It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
• In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
• Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

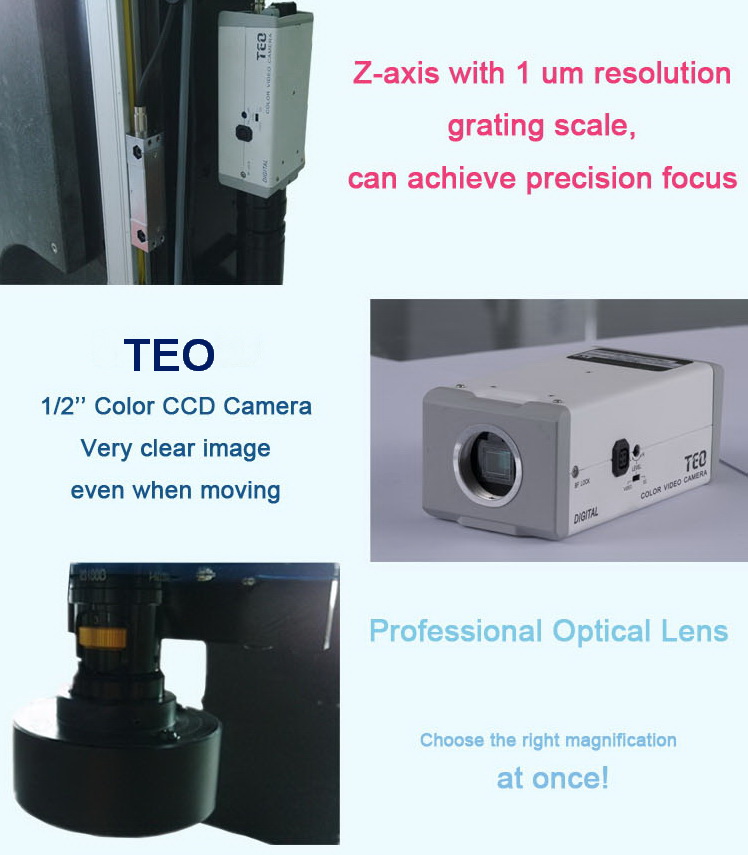

• It adopts TEO™ 1 / 2’’ color CCD camera, the cross-line generator is the measuring aiming system.
• Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK-2000 data card.
• It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
• Granite base and column, high stability.

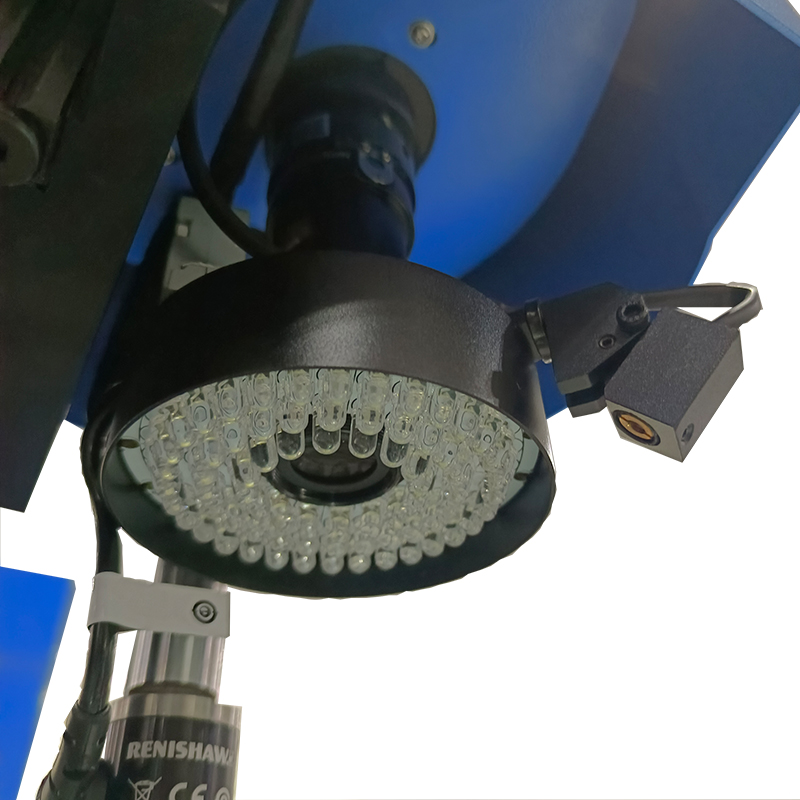

• ‘Image+Probe’ measuring method, equipped with Renishaw™ probe and the self-developed 3D metrology software, can achieve rapid measurement with high accuracy.

Structure

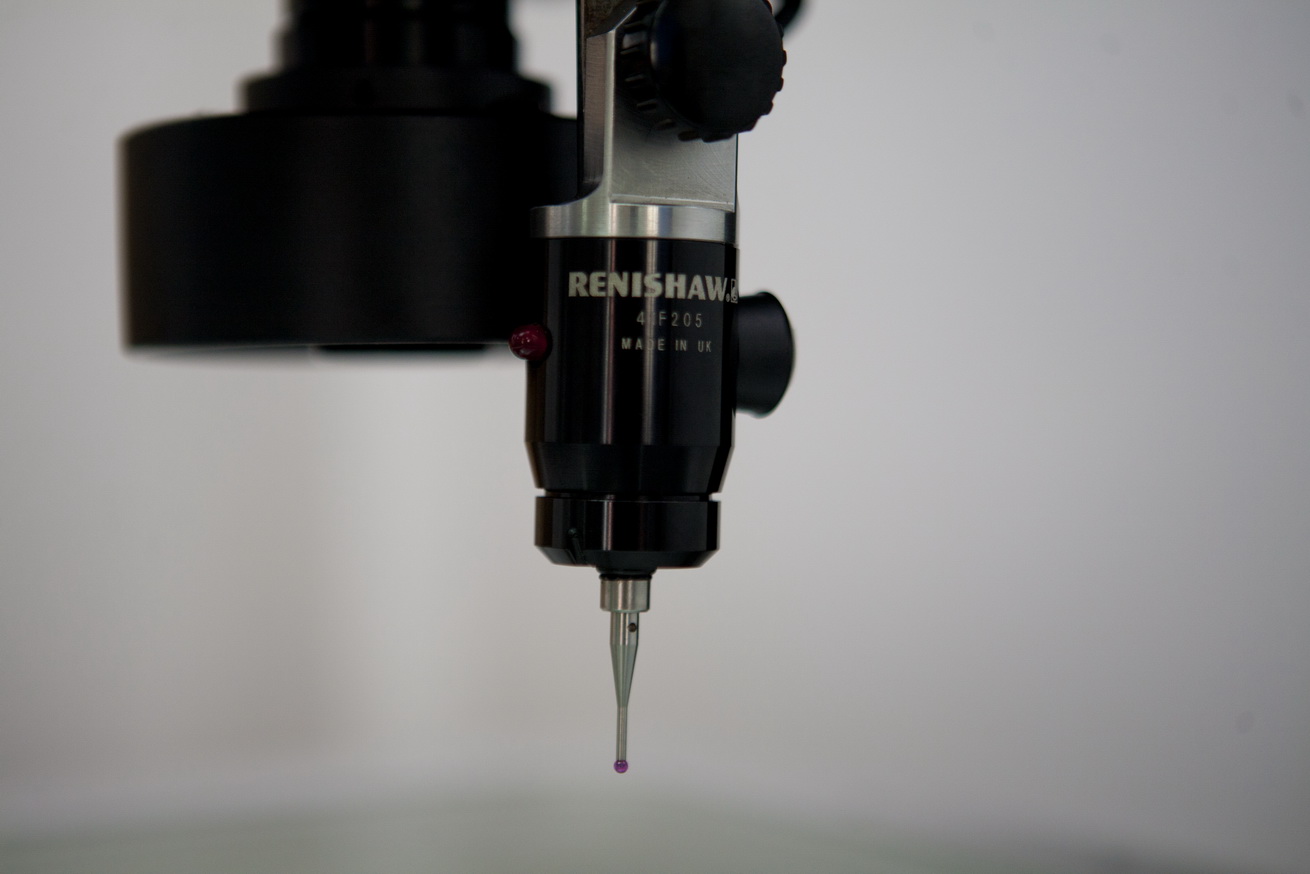

RENISHAW™ probe MCP, brings simple and efficient ‘Image+Probe’ 3D Measurement!!!

Specification

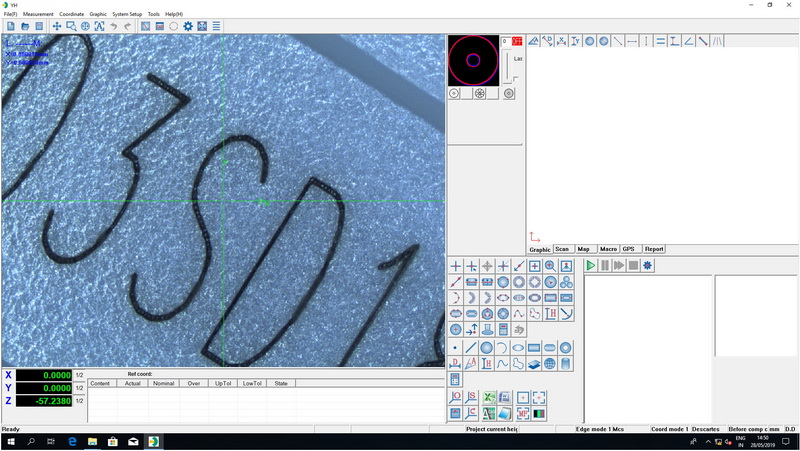

Software

• 2D measurement: measure height, width, length, both sides of the angle, the cone angle, the diameter of the cylinder, chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.
• Probe measurement: Renishaw™ probe, can measure 3D data like hole depth, diameter of ball, cylindricity, etc.
• Max. and Min. Limit: can set max. and min. limits, when the actual size of the product is out of range, the corresponding measurement data will have warning in red background.
• Reverse engineering: software draws measurement graphics, can have real direct entry into AutoCAD, also can be saved as DXF, dwg. files (can be a fast scanner, more than two times faster than general software speed).
• Picture output: measurement or observation results can be saved as pictures in various format like BMP, Jpg.
• Real-time sub-pixel to find the point: the first sub-pixels, advanced image processing technology into video measurement industry, greatly improves the measurement accuracy and measurement efficiency of a pixel, compared to similar software, saves at least 3/5 time, improve the accuracy of more than 2 times (in the same optical magnification).
• Vector drawing functions: the image or fonts can be zoomed in or out steplessly.
• Maps measurements: can capture and form a complete picture of large work piece, can directly dimension on the graph.
• The command line: directly form the command line, enter the coordinate information to generate the point, line, circle, arc, to meet the special needs of virtual measurement.
• Line position tolerance: roundness, straightness, parallelism, perpendicularity, concentricity, etc.
• Dimensioning function: radius, diameter, angle, linear dimensions, text annotation, coordinate label etc.
• Automatic measurement functions: automatically find a straight line, multi-zone automatic find a straight line, click circle marquee round, round multi-zone automatic arc.
• Report function: measurement results can be directly converted to EXCEL, WORD, CAD.
• Language: support Chinese, English, Korean, Japanese.
