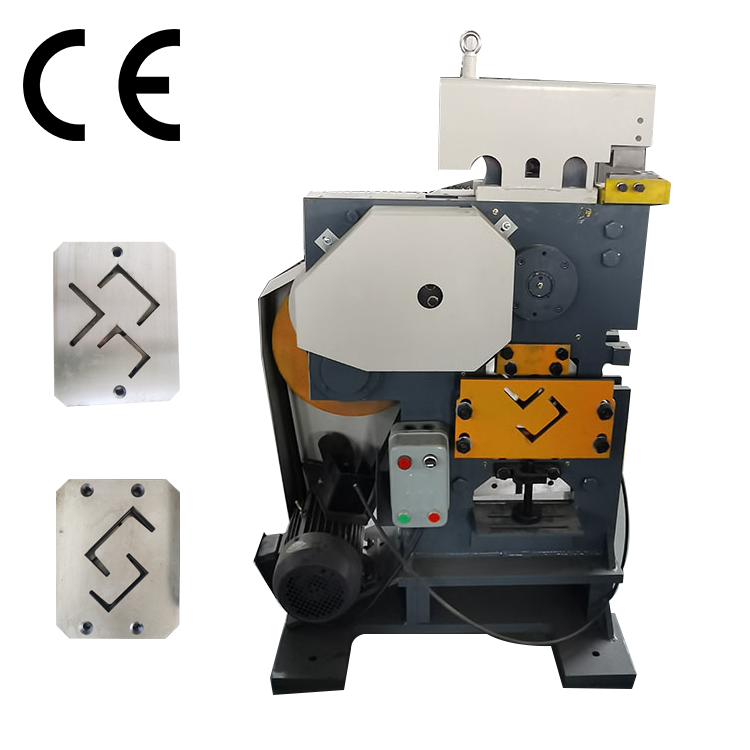

Integrates cutting, punching, shearing, and bending functions into one machine, reducing space and investment costs.
Features an intuitive interface that requires minimal training, lowering the skill requirements for operators.
Automated processes speed up production, reducing cycle times and increasing output.

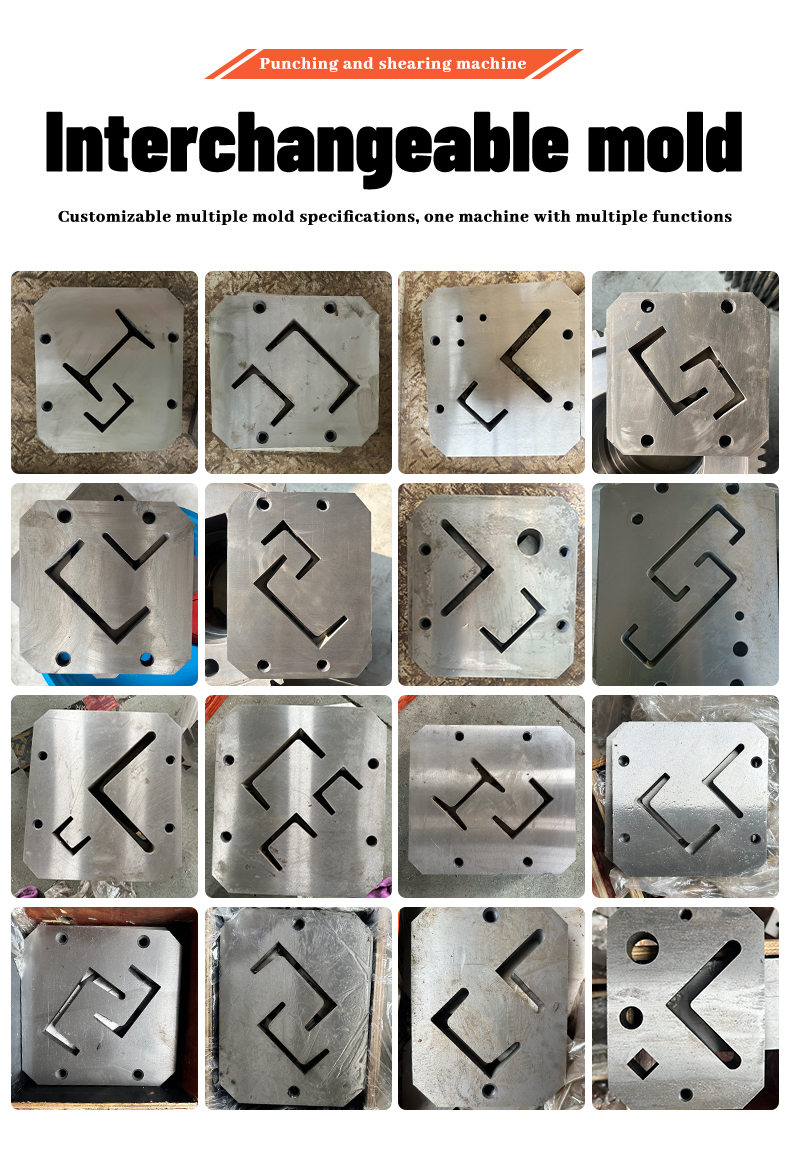

Uses advanced control systems and precision molds to ensure high accuracy in workpiece dimensions and shapes.
Equipped with hydraulic drive for a lightweight, quiet, and reliable operation with overload protection.
Offers high versatility with high precision and reliable performance, suitable for various operations.
Provides low-cost, high-power operation, suitable for mass production and energy-efficient.

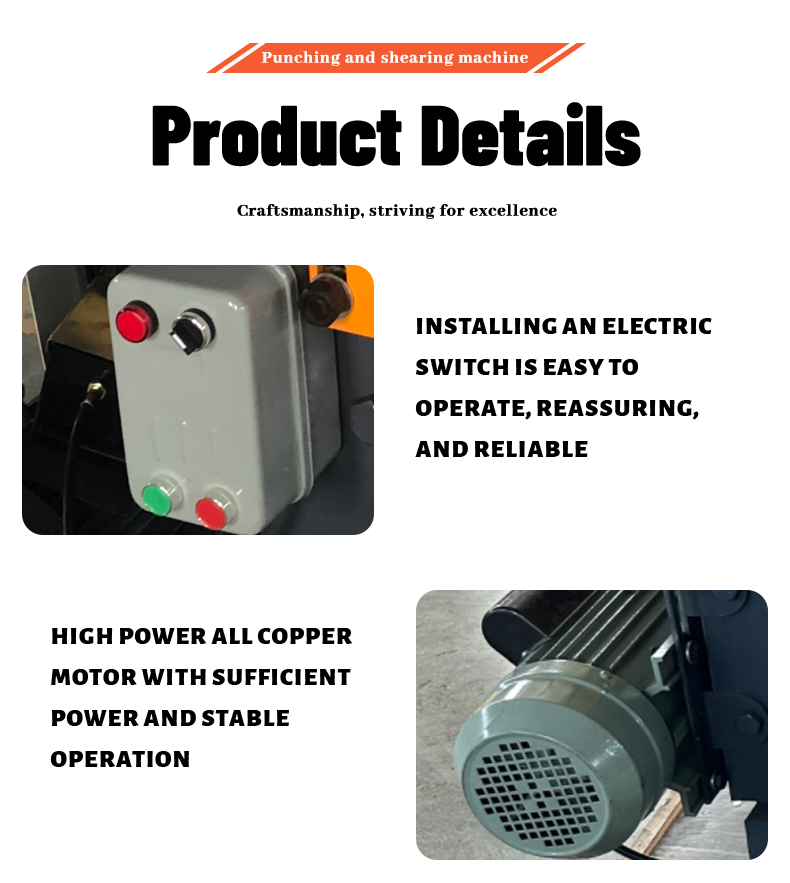

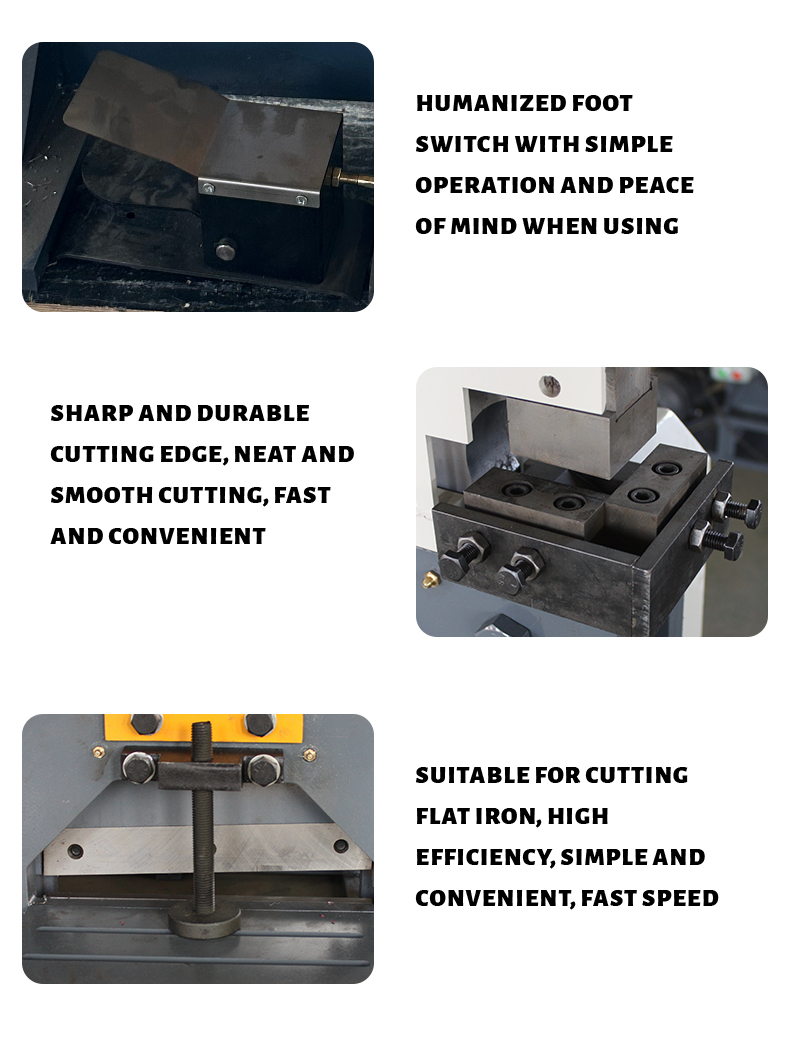

Includes multiple safety devices like overload protection and emergency braking systems to ensure safe operation.
Capable of processing small workpieces with multiple workstations, demonstrating strong adaptability.

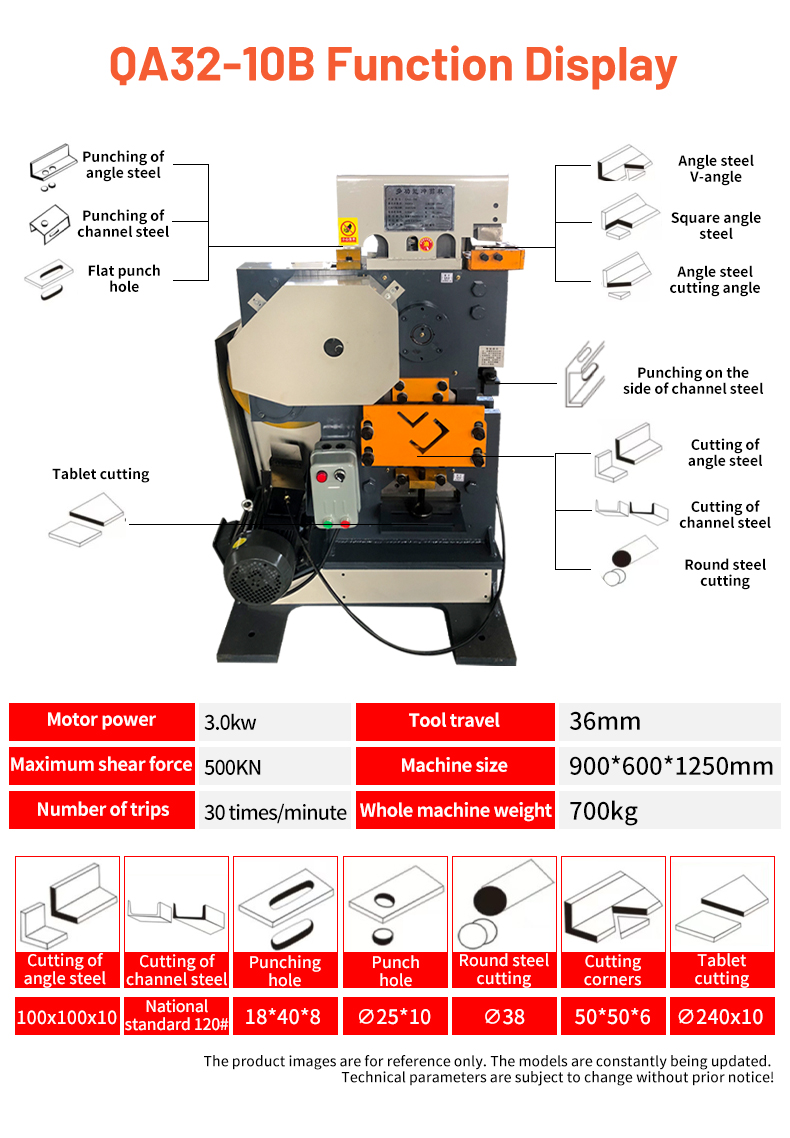

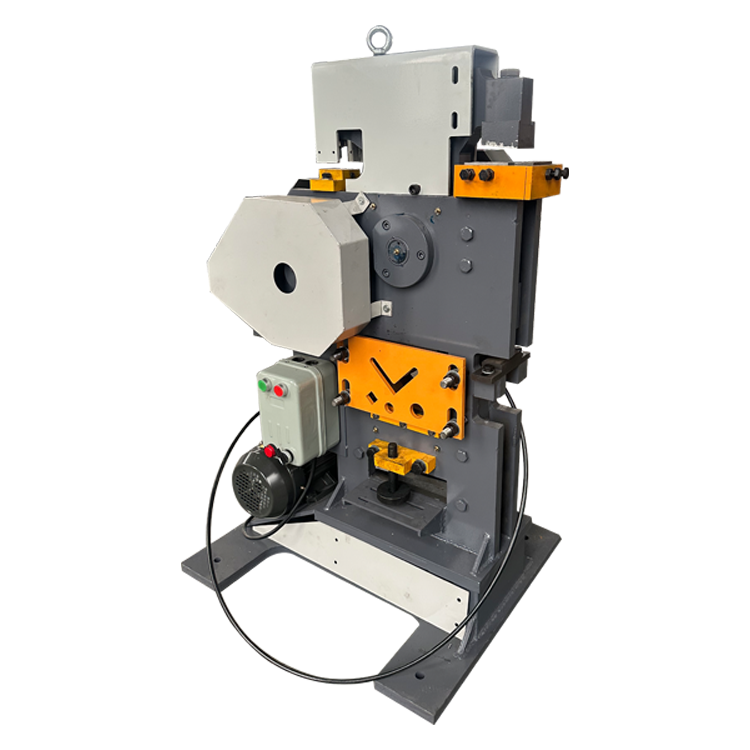

| Model | QA32-10 |
| Pressure | 500KN |
| Mold stroke | 30MM |
| Stamping speed | 30 time/min |
| Total power | 3.0KW 2P |
| Weight | 700KG |
| Form factor | 1100*600*1450mm |
| Package size | 1200*700*1650mm |
| Cut corner steel | MAX 125*125*12mm |
| Grooved steel | MAX 16# |
| Cut flat steel | MAX 330*12mm |
| Punching thickness | MAX 12mm |
| Cut round bars | MAXΦ40mm |
| Voltage | 220V/380V/400V/415V/customizable |
| Voltage frequency | 50/60HZ |
Adhering to the business philosophy of "quality first, reputation first, service first, time first" and our core purposes of "integrity management, credit-based" operations. We firmly believe that customers are always the source of a company's development. Adhering to a market-oriented approach, with a commitment to offering perfect after-sales service, we are willing to act as a convenient and innovative carrier, utilizing our spirit of innovation to open up a broader collaborative space.

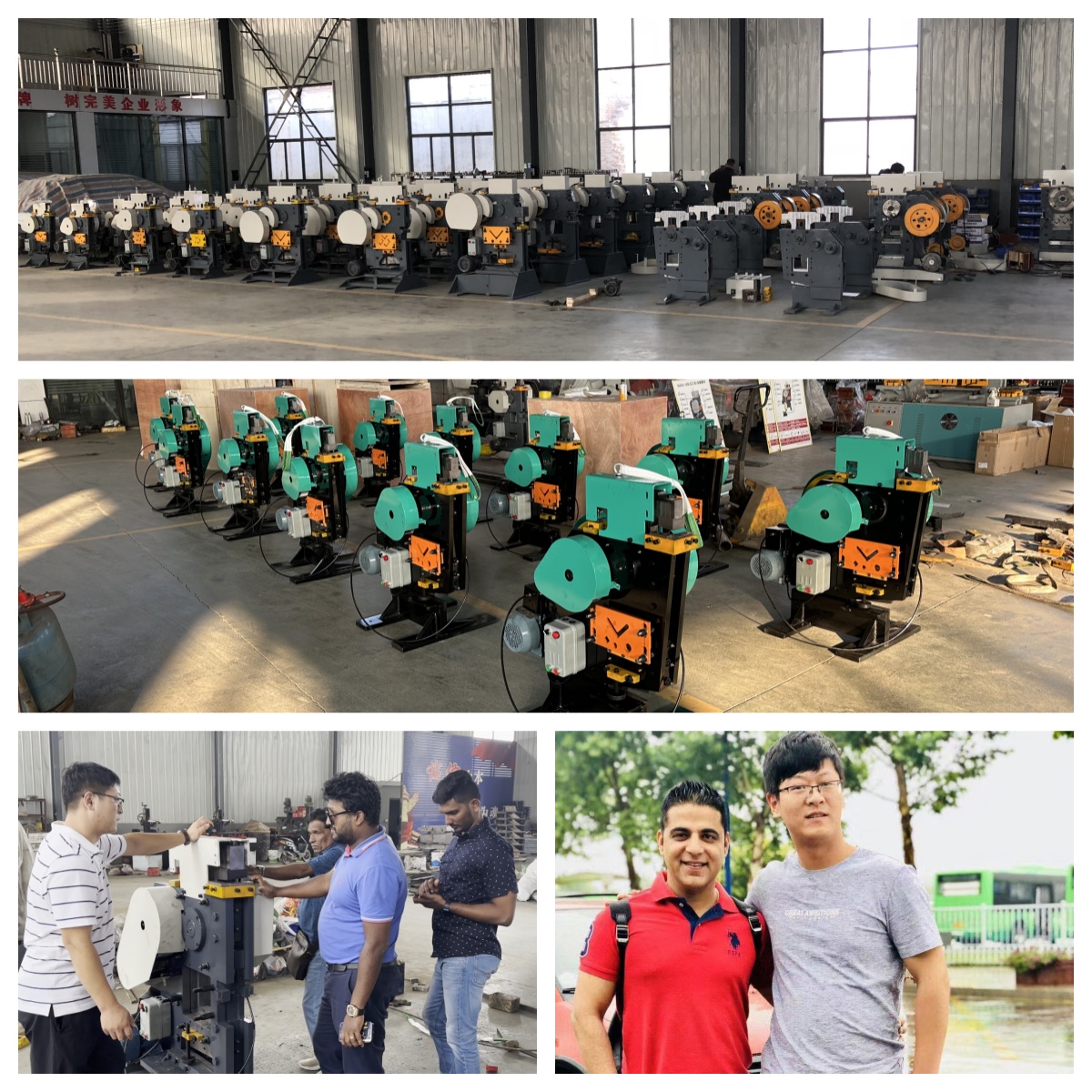

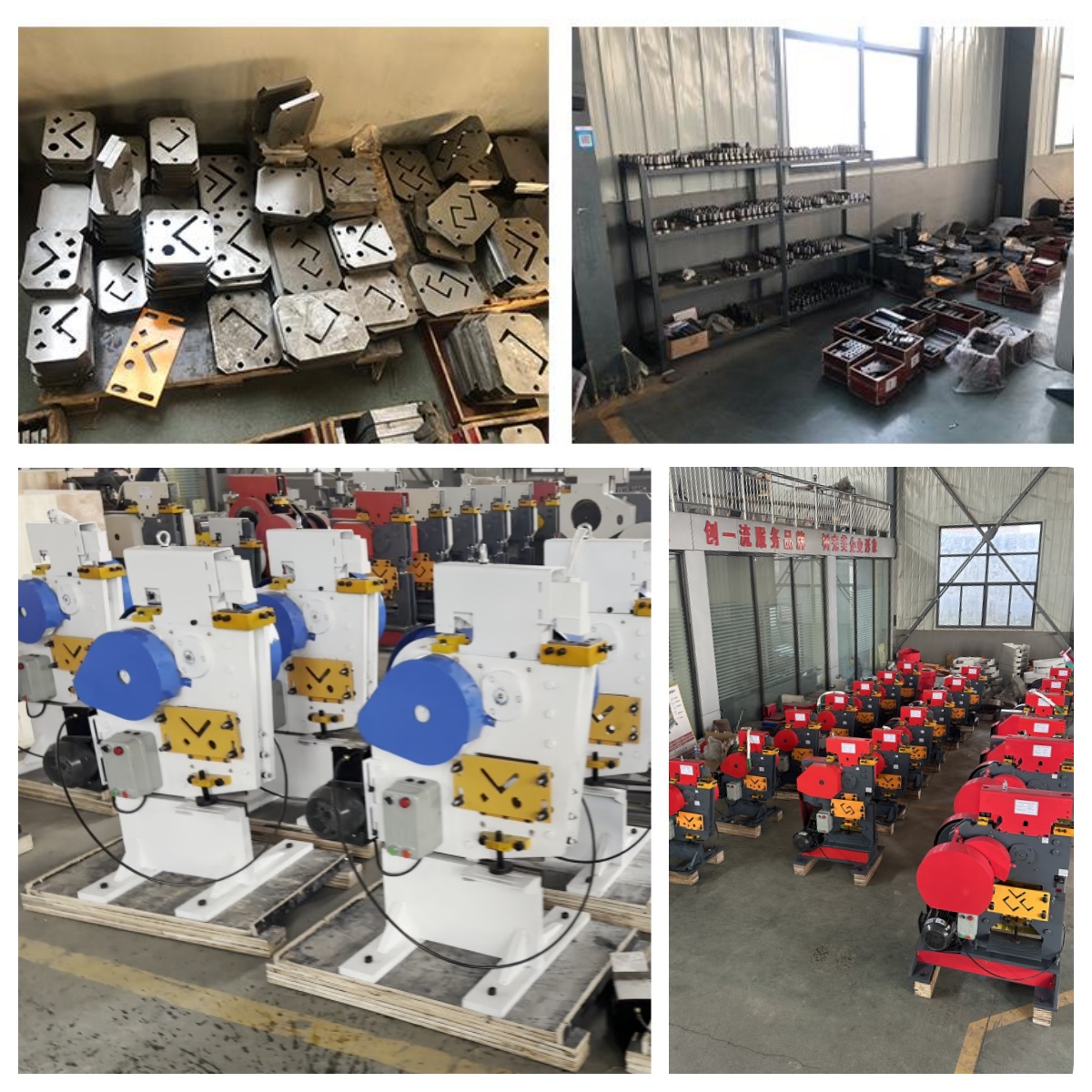

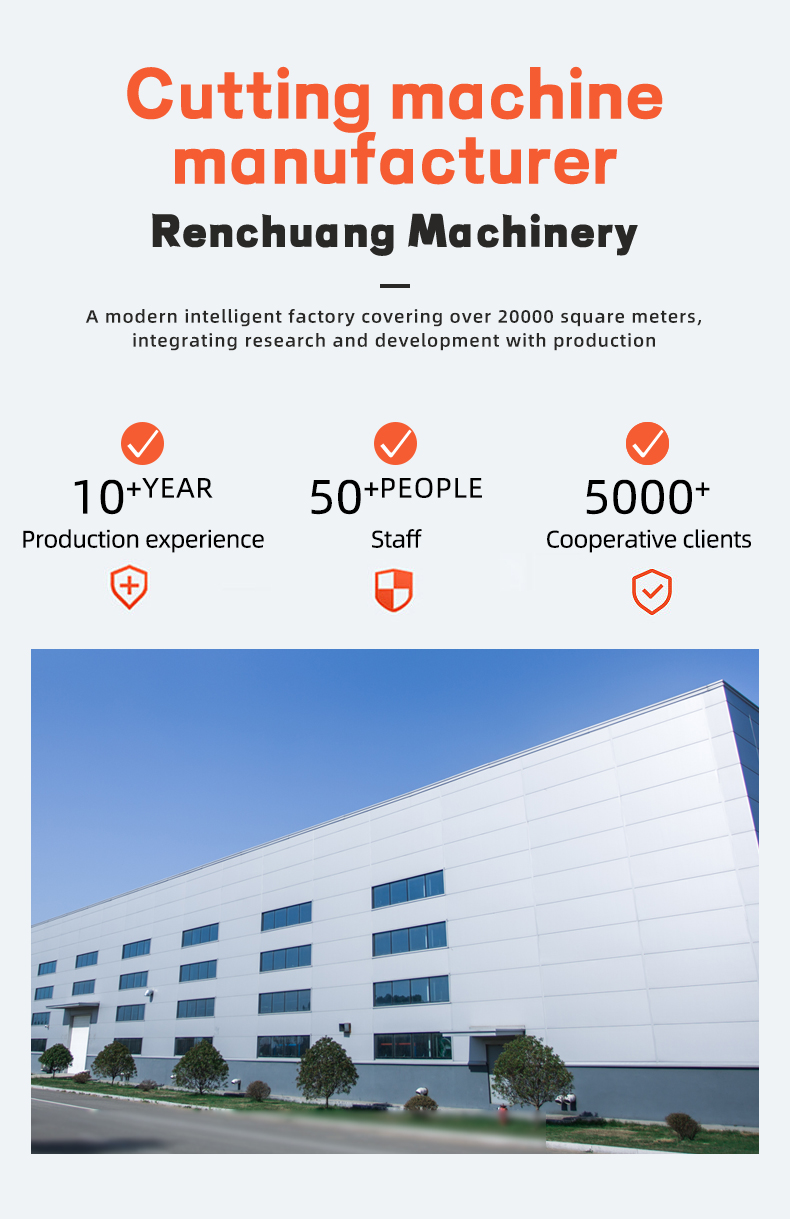

We are a manufacturer and have our own design team for product design. You are highly welcome to visit our factory to inspect our machine quality on-site. Any questions will be addressed immediately.
We accept T/T, L/C, Western Union, Paypal, and Secure Payment options.
We warranty our materials and workmanship. Our absolute commitment is to ensure your satisfaction with our products. Regardless of whether a matter falls under warranty, it is our company culture to address and resolve all customer issues to everyone's satisfaction.
For samples, the lead time is approximately 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. Lead times become effective once we receive your deposit and obtain your final approval for the products.

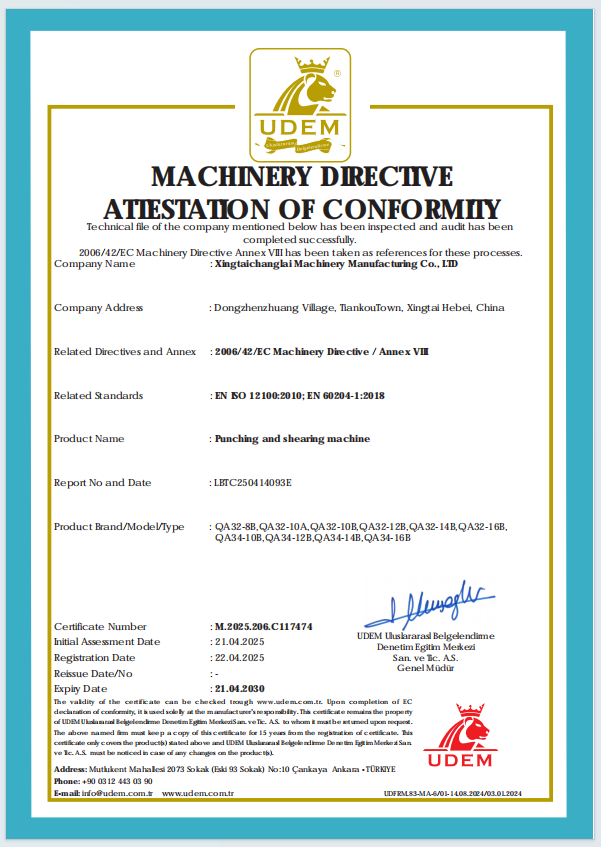

Yes, we can provide most documentation including Certificates of Analysis/Conformance, Insurance, Origin, and other required export documents.
Yes, we accept various kinds of customization, including customized logos and personalized machine features.
