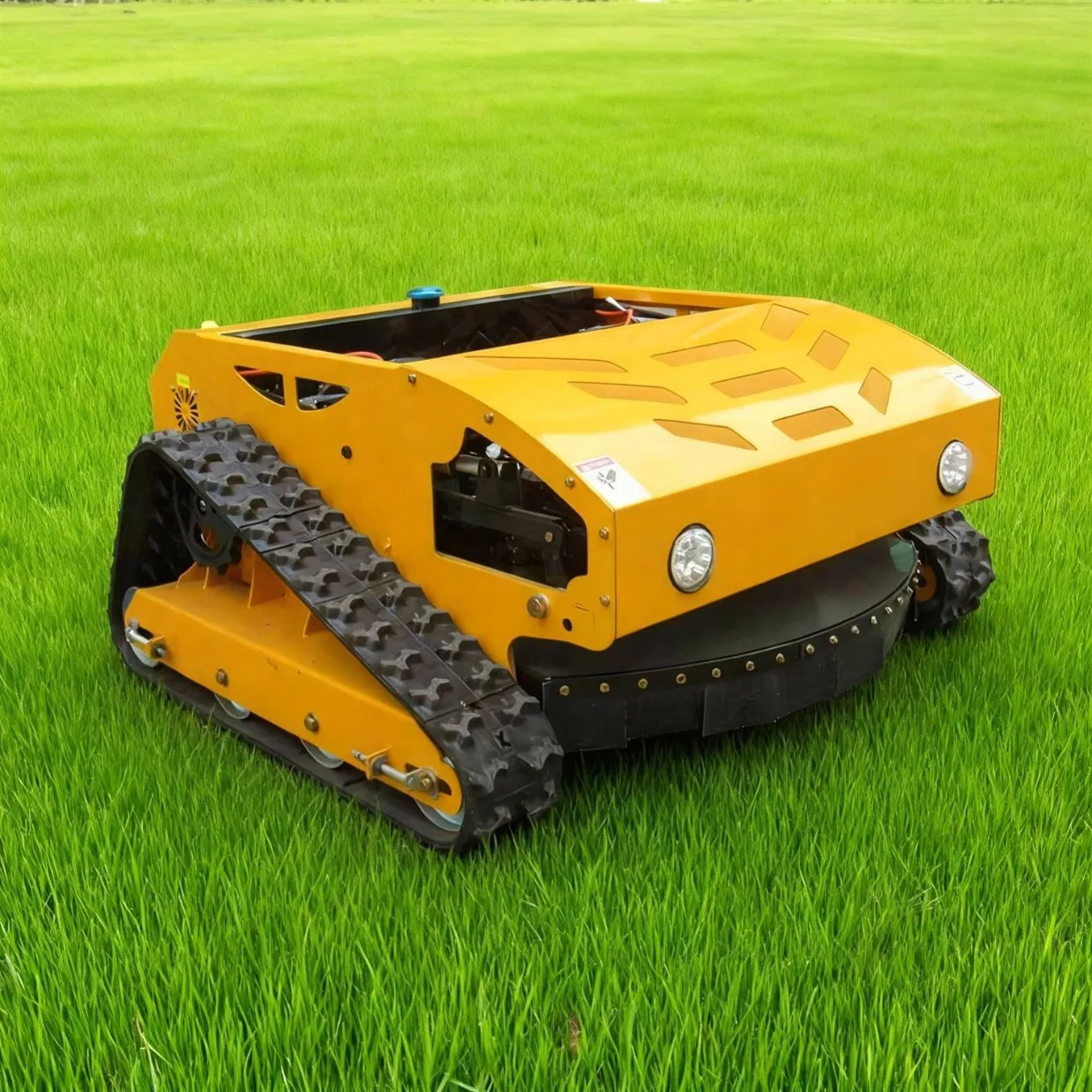

Versatile Sh-800b Lawn Care Machine Suitable for Parks Gardens and Sports Fields with Demanding Grass Conditions

1 / 5

Versatile Sh-800b Lawn Care Machine Suitable for Parks Gardens and Sports Fields with Demanding Grass Conditions

Customization:	Available
Type:	Robotic Mowers
Moving Way:	Remote Control

Send Inquiry

Product Description

Overview

Basic Info.

Cutter Type Rotary Lawn Mower

Applicable Area Customize

Certification CE

Cutter Kind Customize

Mowing Requirements Ground Type

Usage Common Lawn

Power Source Petrol / Gas

Weight 255kg

Cutting Width 800mm

Track Width 150mm

Ground Contact Length 940mm

Walking Speed 0-5km/H

Maximum Slope Angle 55°

Maximum Rotational Speed 3600r/Min

Fuel Capacity 10L

Transport Package Steel Frame or Plywood Cases

Specification 1110*1220*620mm

Packaging & Delivery

Package Size 1110.00cm * 1220.00cm * 620.00cm

Package Gross Weight 305.000kg

Product Description

Specification Parameter	Details
Weight	225kg
Cutting width	800mm
Track width	150mm
ground contact length	940mm
Walking speed	0-5km/h
Maximum slope angle	55°
Maximum rotational speed	3600r/min
Fuel capacity	10L
Specification	1110mm1220mm620mm

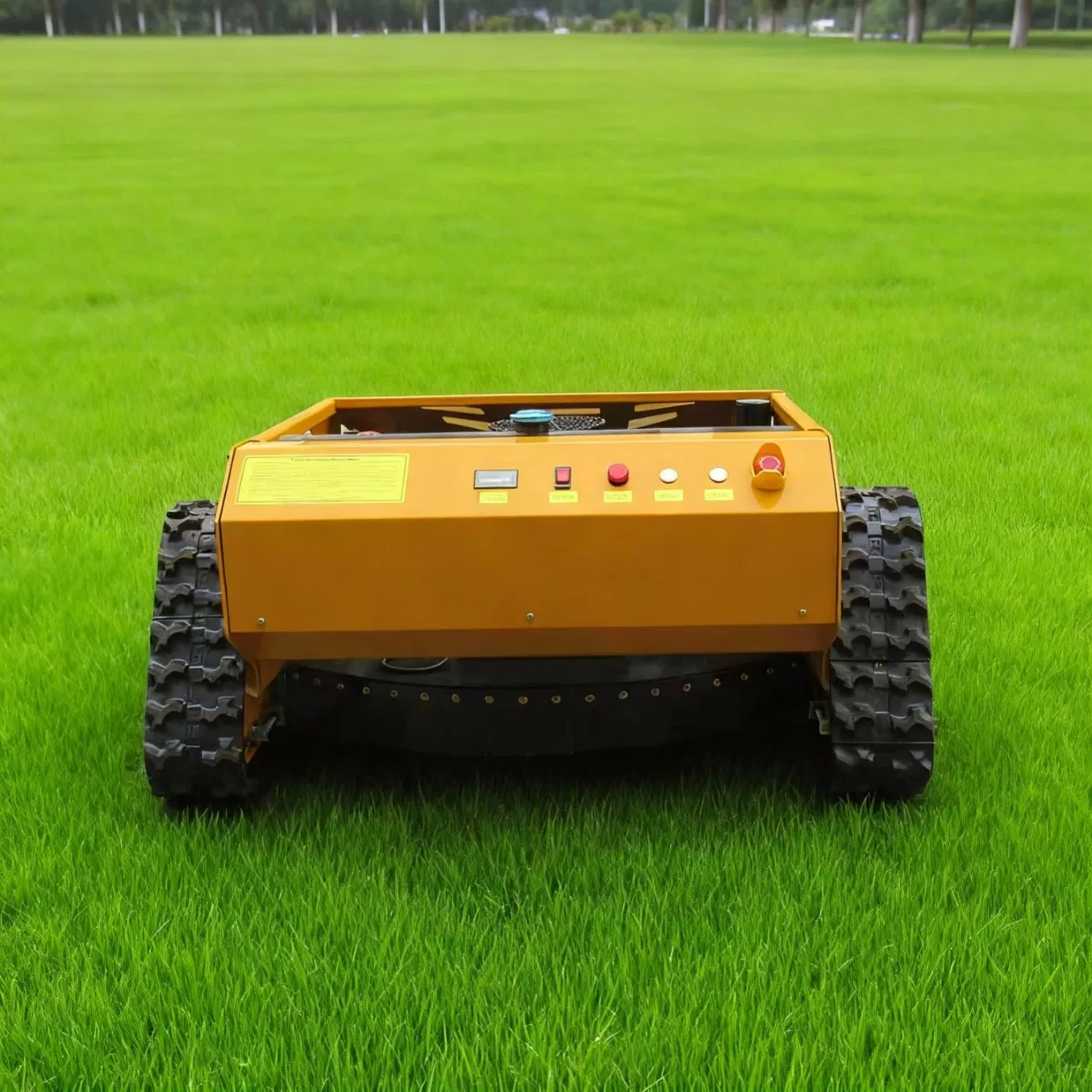

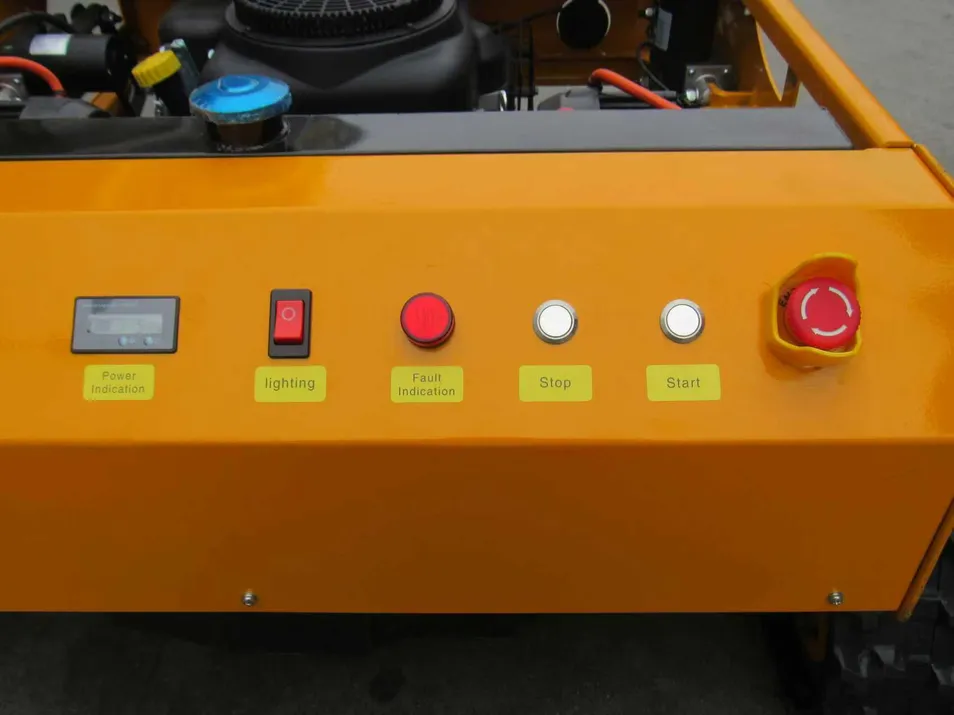

Operation Control Panel

This is the control and status display area of the lawn mower, featuring a power indicator light, lighting switch, fault indicator light, stop button, start button, and an emergency stop switch on the far right. It serves as the core of human-machine interaction, managing the device's start/stop functions, status monitoring, and emergency protection.

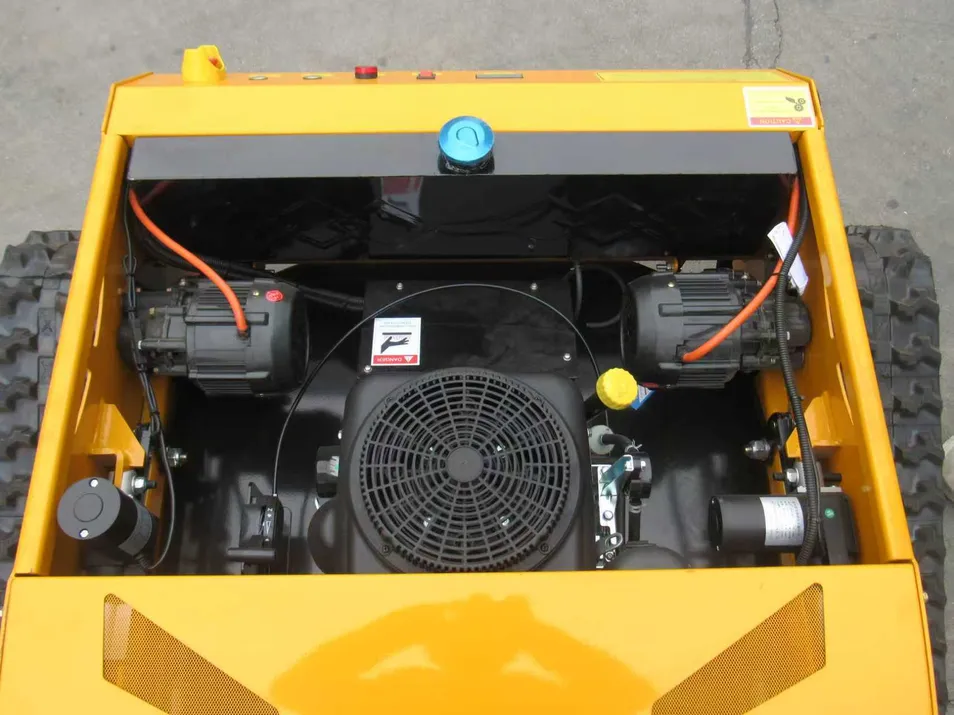

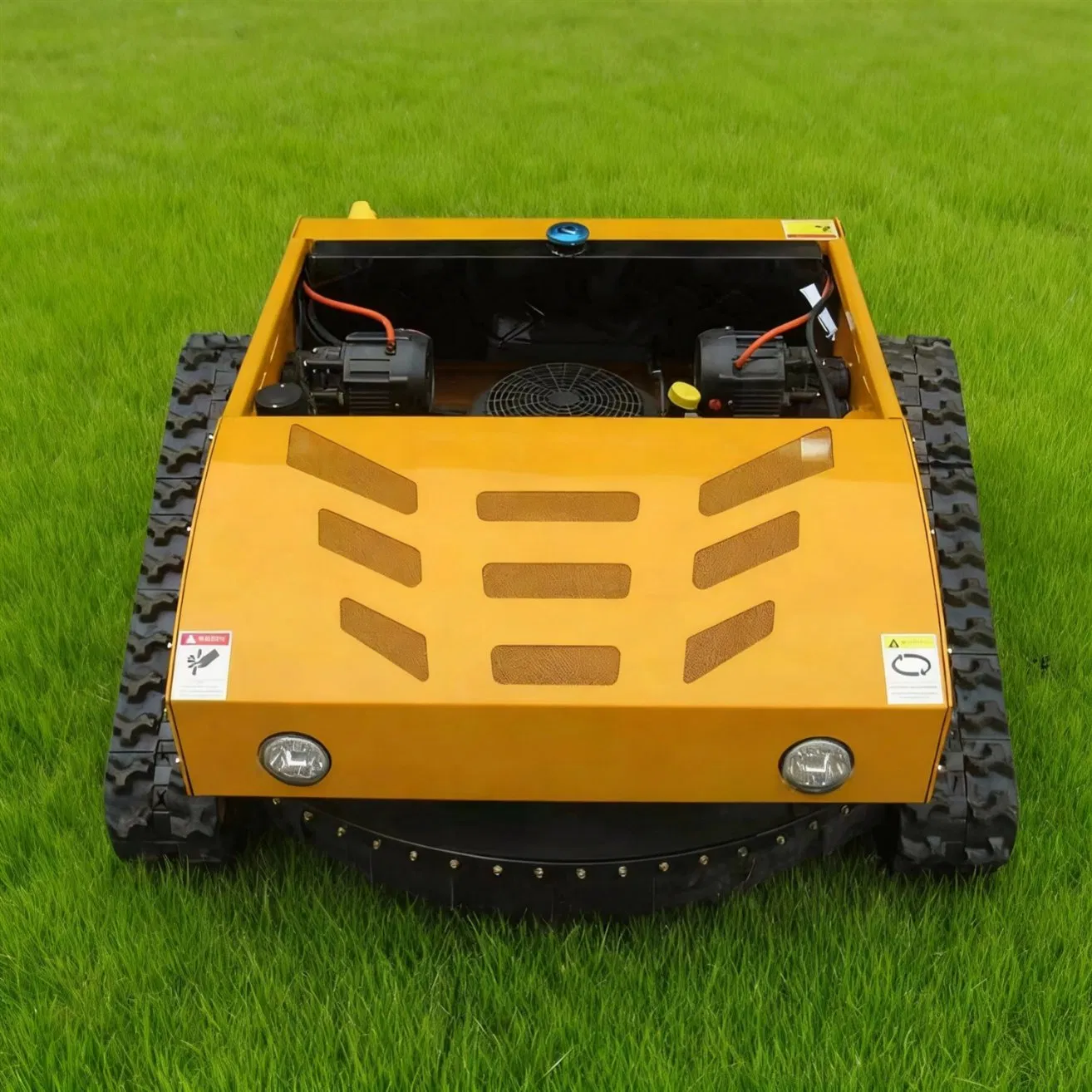

Interior of the Power Compartment

This is the core power unit compartment of the lawn mower, where you can clearly see key components such as the engine (with cooling fan), left and right dual drive motors, and fuel filler port. It is the power source of the entire machine, providing energy for the lawn mower's travel and cutting systems.

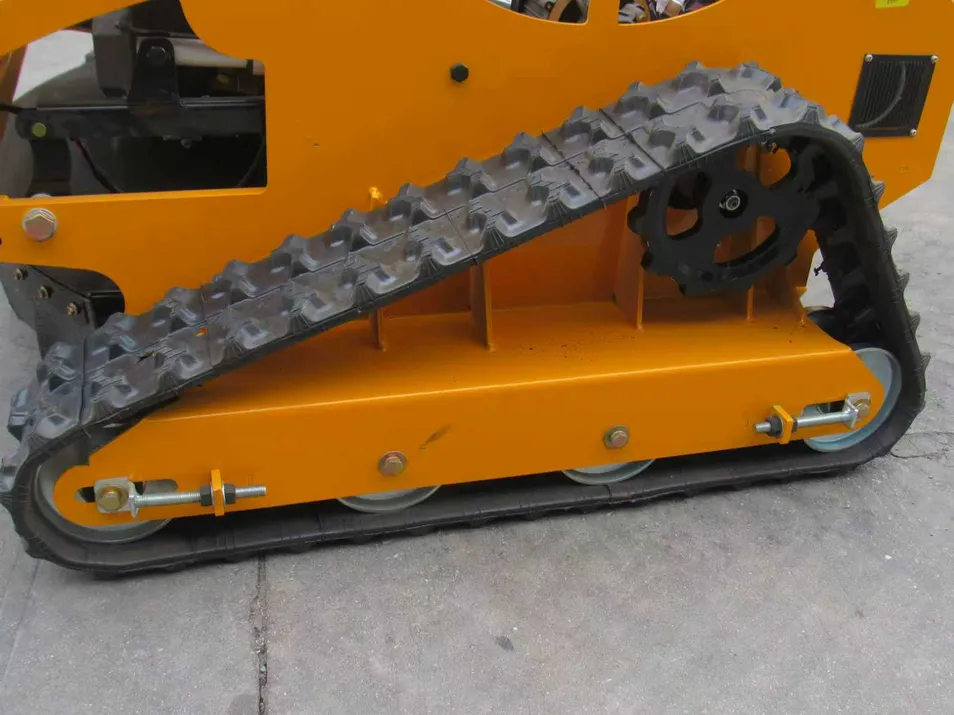

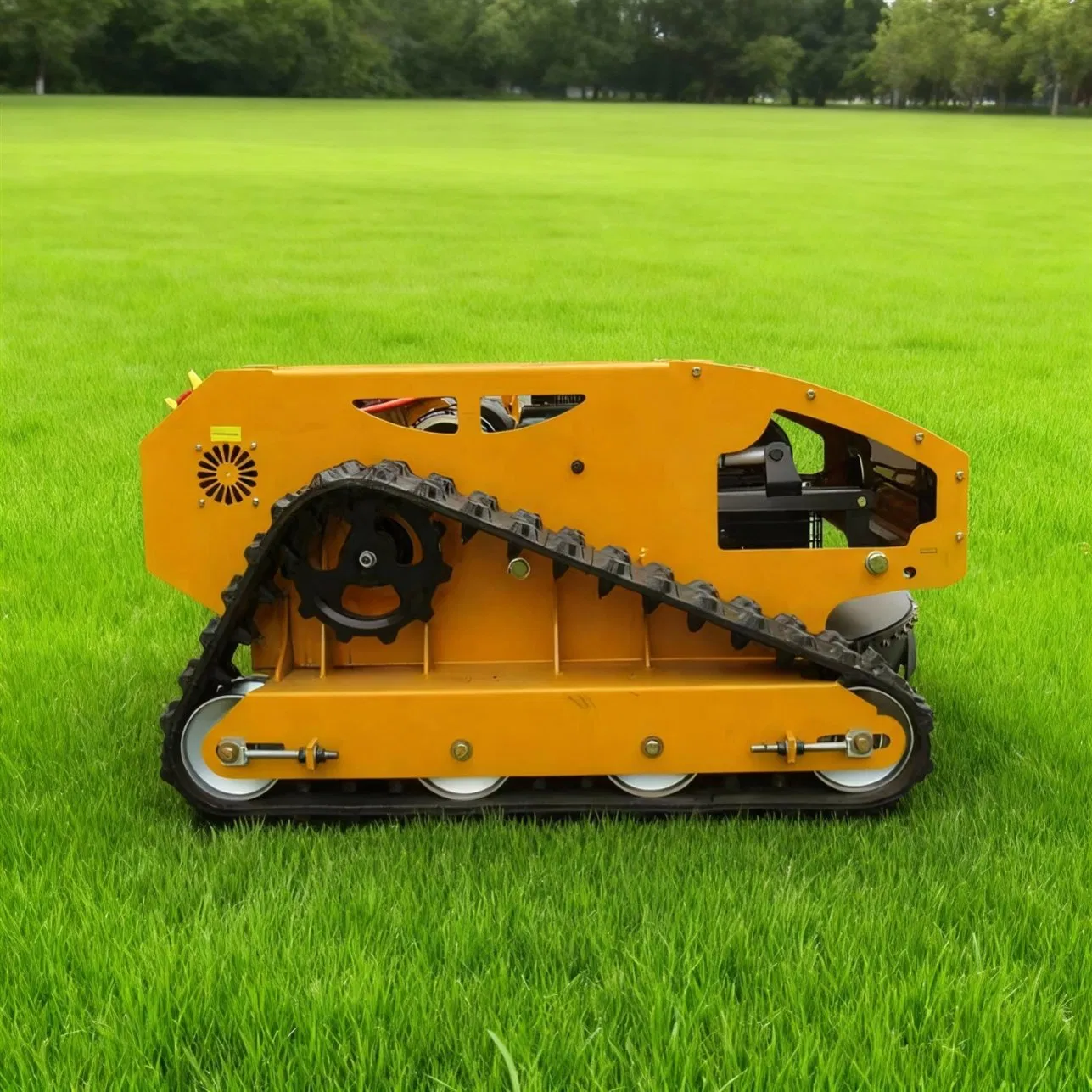

Track Drive Mechanism

This is the track drive and support system (side view) of the lawn mower, showing the rubber track, drive sprocket, support rollers, and track tensioning structure. This mechanism transmits power to the track and ensures its smooth operation, making it critical for the mower's all-terrain capability.

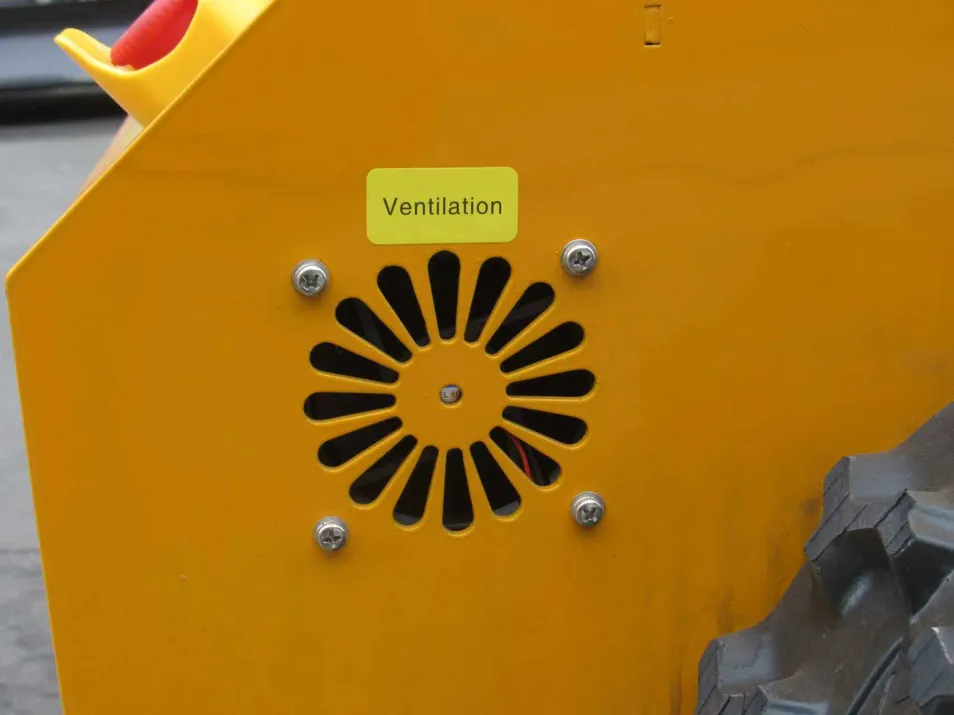

Ventilation Grille

It is a heat-dissipation and ventilation structure for the machine's power compartment. The radial slotted design allows hot air generated by the engine and other internal components during operation to escape effectively, preventing overheating and ensuring the stable, continuous performance of the mower. The yellow label above it, marked "Ventilation," directly indicates its function.
